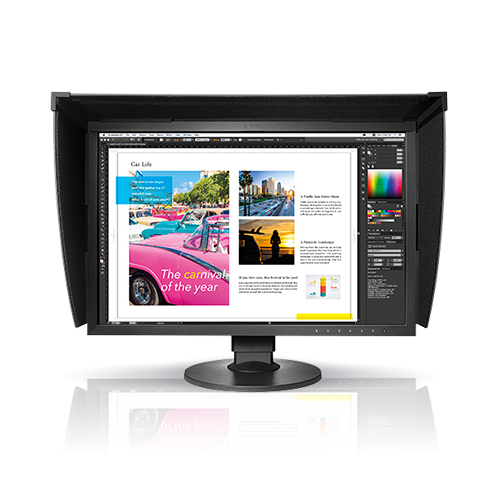

Eizo ColorEdge CG2420 Graphics Monitor

24” LCD | Self-calibration Sensor | Hood included

$2,395.00
RRP $2,530.00
SAVE $135.00 (5%)
Sold Out - Backorder Available


Calculate Shipping



Free pick-up from store - $0.00
Pick up from 197 Harrington Street, HOBART Tasmania 7000 Opening hours M - F from 9 - 5

Simple and Precise Color Management

Built-In Sensor to Automate Your Workflow

Automate your calibration with the sensor that is housed within the front bezel. The sensor swings onto the screen only when calibrating, eliminating the need for a third-party calibration device. It even operates while the monitor is in portrait mode.


ColorNavigator 7 Color Management Software

ColorNavigator 7 is the latest calibration and quality control software for ColorEdge color management monitors. It combines all the features of EIZO's previous color management software, ColorNavigator 6 and ColorNavigator NX, to create a new and improved solution for creatives in a range of fields. The proprietary software makes calibration simple and produces predictable results for photography, design, print, and video creation.

ColorNavigator 7

ColorNavigator 7

More about ColorNavigator 7



ColorNavigator Network Quality Control Software

ColorNavigator Network provides centralized quality control of ColorEdge monitors that have ColorNavigator 7 or NX installed. Administrators can set color modes, schedule self-calibration, register or adjust asset management settings, and other tasks whether the monitors are local or remote. ColorNavigator Network is hosted on a secure cloud server to free you from the initial investment and running costs of providing your own server.

ColorNavigator Network

ColorNavigator Network

More about ColorNavigator Network

Features for Creative Work

Vivid Colors Reproduced to Industry Standards

color reproduction areaThe wide color gamut of the ColorEdge CG2420 reproduces almost the entire Adobe RGB color space so images shot in Adobe RGB will be displayed correctly. Photos of vibrant blue skies and lush green forests are reproduced faithfully in a  way that monitors limited to an sRGB color space cannot display. The wide color gamut also ensures reproduction of almost the entire ISO-coated and US web-coated CMYK color spaces used in printing.











10-bit Simultaneous Display

Using the DisplayPort or HDMI inputs, the ColorEdge CG2420 offers 10-bit simultaneous display* from a 16-bit look-up-table (LUT) which means it can show more than one billion colors simultaneously. This is 64 times more colors than you get with 8-bit display, resulting in smooth color gradations and reduced Delta-E between two adjacent colors.

10-Bit Simultaneous Display

*A graphics board and software which support 10-bit output are also necessary for 10-bit display. Equipment that supports Deep Color is necessary with the HDMI inputs.

Adjusted at the Factory for Smooth Color Gradations

The gamma level for each ColorEdge monitor is adjusted at the factory by measuring the R, G, and B gamma values from 0 - 255, then using the monitor's 16-bit look-up-table (LUT) to select the most appropriate tones and achieve the desired value. This ensures the smoothest color gradations in your images.

Adjusted at the Factory for Smooth Color Gradations

Stable Display Technology for Unrivaled ColorEdge Quality

Stable Display Technology for Unrivalled ColorEdge QualityThe color and brightness of an LCD monitor can shift due to changes in ambient temperature and the temperature of the monitor itself. ColorEdge monitors are equipped with a temperature sensor for accurately measuring the temperature inside the monitor, as well as estimating the temperature of the surrounding environment. With this temperature sensing and estimation technology, the monitor adjusts in real-time so gradations, color, brightness, and other characteristics continue to be displayed accurately.

Read more about image quality stabilization in our White Paper.





Stable Color in Just 3 Minutes

A typical monitor takes 30 minutes or more for its brightness, chromaticity, and tone characteristics to stabilize. The ColorEdge CG2420 takes a mere 3 minutes. Whether you are working in a studio or taking the monitor with you on location, you get reliable color display soon after turning the monitor on.

 Stable Color in Just 3 Minutes

Uniformity Across the Screen

Fluctuations in brightness and chromaticity on different parts of the screen are a common trait of LCD monitors. To counteract this, ColorEdge monitors are equipped with EIZO's patented digital uniformity equalizer (DUE) technology to ensure stable image display and counterbalance the influences that a fluctuating temperature may have on color temperature and brightness for stable image display.

Uniformity Across the Screen

Wide Viewing Angles with IPS Panel

The 178° wide viewing angles afforded by the IPS panel technology allow two or more people to view the screen at once with little change in color or contrast.

Wide Viewing Angles with IPS Panel

Feature for Video Editing and Post Production

True Black Display

In compliance with the DCI standard, the ColorEdge CG2420 offers a high contrast ratio of 1500:1* for producing true blacks that are otherwise difficult to display on a typical LCD monitor. When viewing the screen from an angle in a dimly lit room, dark tones typically appear washed out due to the display characteristics of LCD backlights. The CG Series is equipped with a retardation film which allows tones to retain their depth even when viewed from an angle.

*Typical value when DUE Priority is set to "Brightness".

Sleek, User-Friendly Design

Slimmer Bezels

The slim cabinet features unobtrusive frames that are 39% slimmer than its predecessor's so you can focus more on the screen.


Seamless Electrostatic Switches

The flat design uses electrostatic switches on the front bezel in place of traditional buttons for seamless access to monitor settings.


Built-in Carrying Handle

A carrying handle on the back of the monitor allows you to easily move it from one location to another.


Easy-Access USB Ports

The monitor is equipped with three easy-to-access USB 3.0 ports, including one port for battery charging devices such as a smartphone.


Features for Comfort and Ease-of-Use

non glareMinimized Reflections with Non-Glare Panel

The monitor is equipped with an IPS non-glare panel for high visibility. It also uses dimming technology to minimize flicker and help prevent eye fatigue for a more comfortable working environment.





ip conversionI/P Conversion for Flicker-Free Display

The HDMI input of the ColorEdge CG2420 supports I/P (interlace/progressive) conversion for converting the interlace signals from TV and video into progressive signals for flicker-free display.



hood.gifLight-Shielding Hood

The CG Series comes bundled with a shading hood that effectively prevents glare on the monitor's screen caused by ambient lighting. The ColorEdge CG2420's shading hood is newly designed and attaches to the monitor magnetically. This allows the users to attach the hood quickly and easily without needing to connect separate parts.









Ergonomic Stand for Comfort and Convenience

Adjust the screen to the most comfortable angle and reposition it to show your work to a colleague or client. The monitor comes with a versatile stand that offers height, tilt, and swivel adjustments as well as portrait display.

stand

Multiple Inputs

DisplayPort, HDMI, and DVI-D inputs are included and support various types of graphics boards. The HDMI input also offers direct connection with digital cameras.

connectors

Commitment to Quality

5-Year Manufacturer's Warranty

5 Year WarrantyColorEdge monitors are backed by a manufacturer's 5-year warranty that covers all components including the LCD panel*. EIZO manufactures its products at its own factories to allow close control over production quality and ensure each monitor is built to last.

*Usage time is limited to 30,000 hours.

Zero Bright Pixels

Zero bright policyEIZO guarantees its ColorEdge monitors will be free from bright sub-pixels for six months from the date of purchase.

See our Bright Pixel Policy for details.

Brightness and Color Warranty

The brightness and color of the ColorEdge CG2420 is warranted for up to 10,000 hours* from the date of purchase.
Monitor must be used within the recommended brightness of 120 cd/m2 or less and the color temperature between 5000 - 6500 K. ;



TUV Color Accuracy and FograCert Softproof Monitor Certified

The CG2420 has obtained TUV Rheinland’s Color Accuracy (Quick Stability grade) certification. Color Accuracy is the first quality and performance criterion to measure the color accuracy of display devices for multiple graphics fields such as photography, post production, design, and printing.

It is also recognized by Fogra as a Class A FograCert Softproof Monitor. Using it in a FograCert Softproofing System ensures designers, print specifiers, and print producers can rely on the soft proof for predictable and consistent results.

More about these certifications


Evaluation carried out with the monitor's DUE Priority set to Uniformity.

Used by ColorEdge Ambassadors

 Ambassador ProgramThe ColorEdge Ambassador Program showcases professional photographer, designers, filmmakers, and other creatives who are committed to inspiring and educating artists around the world of all levels. The ColorEdge CG2420 is used by ColorEdge Ambassador Marco Olivotto from Italy in retouching and color correction.

More about the ColorEdge Ambassador Program

Color Simulation Software

EIZO's UniColor Pro software simulates color blindness when used with select EIZO LCD monitors. It allows designers to see how their printed materials, signs, web contents, videos, etc. will appear to those with color blindness.

More about UniColor Pro

Download UniColor Pro

Used by Professional Creatives Worldwide

In 2015, EIZO established the ColorEdge Ambassador Program which showcases professional photographers, designers, filmmakers, and other creatives who are committed to inspiring and educating artists around the world. EIZO's Ambassadors – all of them ColorEdge users – are passionately dedicated to their craft and prepare the best equipment for realizing their creative vision.

To see our ColorEdge Ambassadors, click here.
ambassadors



(EIZO_CG2420)

Technical data

  • Wide gamut LCD with LED technology, contrast 1,500:1, brightness 400 cd/m²
  • 99% Adobe RGB and 98% DCI-P3 color range
  • Integrated measurement device and fully automatic self-calibration
  • Precise hardware calibration of brightness, white balance, and gamma
  • Digital Uniformity Equalizer for perfect luminance distribution and color purity
  • Color precision with 16-bit look-up-table and up to 10-bit color reproduction
  • Temperature-controlled adjustment of color drift and brightness
  • DisplayPort, DVI-D, and HDMI ports
  • ColorNavigator calibration software and light protection shields included in delivery
Cabinet Color Black
Panel
Type IPS
Backlight Wide-Gamut LED
Size 24.1" / 61.1 cm
Native Resolution 1920 x 1200 (16:10 aspect ratio)
Viewable Image Size (H x V) 518.4 x 324.0 mm
Pixel Pitch 0.270 x 0.270 mm
Pixel Density 94ppi
Grayscale Tones DisplayPort, HDMI: 1,024 tones (a palette of 65 thousand tones)
DVI: 256 tones (a palette of 65 thousand tones)
Display Colors DisplayPort, HDMI: 1.07 billion from a palette of 278 trillion
DVI: 16.77 million from a palette of 278 trillion
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical) 400 cd/m2
Recommended Brightness for Calibration 120 cd/m2 or less
Contrast Ratio (typical) 1500:1
Response Time (typical) 10 ms (Gray-to-gray)
Wide Gamut Coverage (typical) Adobe RGB: 99%, DCI-P3: 98%
Video Signals
Input Terminals DisplayPort (HDCP 1.3), HDMI (Deep Color, HDCP 1.4), DVI-D (HDCP 1.4)
Digital Scanning Frequency (H / V) DisplayPort, DVI: 26 - 78 kHz, 24 - 61 Hz
HDMI: 15 - 78 kHz, 24 - 61 Hz
USB
Upstream USB 3.1 Gen 1: Type-B
Downstream USB 3.1 Gen 1: Type-A x 3 (Battery Charging 10.5 W max. x1)
Power
Power Requirements AC 100 - 240 V, 50 / 60 Hz
Maximum Power Consumption 79W
Typical Power Consumption 20W
Power Save Mode 0.7W or less
Standby Mode 0.6W or less
Built-in Calibration Sensor Yes
Features & Functions
Brightness Stabilization Yes
Digital Uniformity Equalizer Yes
Preset Modes Color Mode (Custom, Adobe RGB, sRGB, Calibration)
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Others Color Adjustment (Brightness, Temperature, Gamma, Color Gamut, Hue, Saturation, Clipping, Gain, Independent 6-Color Control, Reset), Picture Expansion (Auto, Full Screen, Aspect Ratio, Dot by Dot), Input Color Format, Input Range, Noise Reduction, Auto Iuput Detection, Menu Rotation, USB CHARGE Port, Power Save, Indicatior, Beep, Input Skip, Mode Skip, Signal Info, Monitor Info, Key Lock, DP Power Save, DUE Priority, Signal Format, Monitor Reset, I/P Conversion
Physical Specifications
Dimensions (Landscape, W x H x D) 554.4 x 396 - 551 x 245 mm
Dimensions (Portrait, W x H x D) 362 x 565.4 - 647.2 x 245 mm
Dimensions (Without Stand, W x H x D) 554.4 x 362 x 64 mm
Dimensions (Landscape with Hood, W x H x D) 572.4 x 405 - 560 x 336 mm
Net Weight 7.8 kg / 17.2 lbs
Net Weight (Without Stand) 5.0 kg / 11.0 lbs
Net Weight (With Hood) 8.5 kg / 18.7 lbs
Height Adjustment Range 155 mm
Tilt 35° Up, 5° Down
Swivel 344°
Pivot 90°
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 0 - 35 °C
Operating Humidity (R.H., non condensing) 20 - 80 %
Certifications & Standards (Please contact EIZO for the latest information.) CB, CE, TUV/GS, cTUVus, FCC-B, CAN ICES-3 (B), VCCI-B, TUV/Ergonomics, TUV/Color Accuracy (Quick Stability), RCM, RoHS, WEEE, EAC, China RoHS, CCC, FograCert Softproofing System (class A)
Dedicated Software
Easy Screen-to-Print Color Matching Tool Quick Color Match Supported
Proprietary Software
Color Mangement Software ColorNavigator 7 Supported
Color Mangement Software ColorNavigator 6 Supported
Dedicated Software
Monitor Management Software ColorNavigator NX Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables Mini DisplayPort - DisplayPort (2 m), DVI-D (2 m)
Others AC power cord, USB cable, Setup guide, EIZO LCD Utility Disk (ColorNavigator software, PDF user's manual), Adjustment certificate, ScreenCleaner, Monitor hood, Mounting screw, Quick reference, Warranty card
Warranty Five Years 2 5
Zero bright sub-pixels for six months from date of purchase
Dimension Drawing PDF
  1. 2  With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
  2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
SKU EIZO_CG2420
Brand Eizo
Shipping Weight 11.0000kg
Shipping Width 0.600m
Shipping Height 0.350m
Shipping Length 0.500m
Shipping Cubic 0.105000000m3
Unit Of Measure ea
